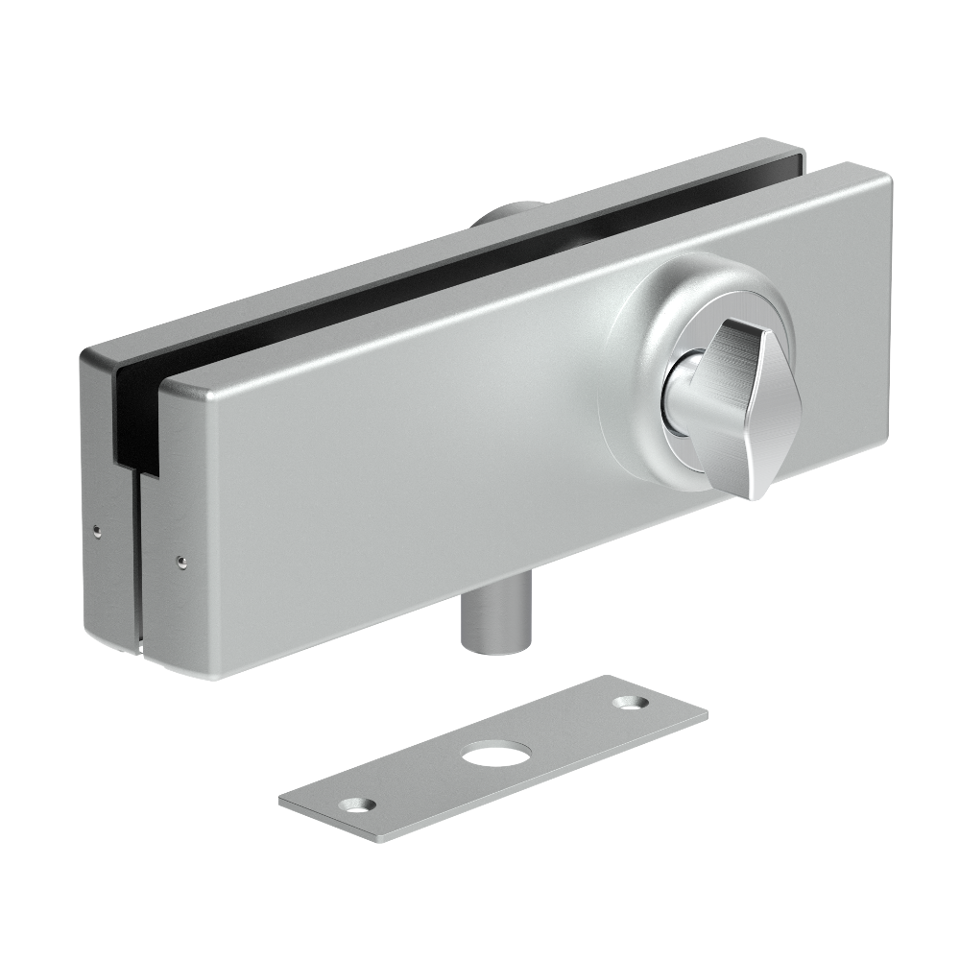

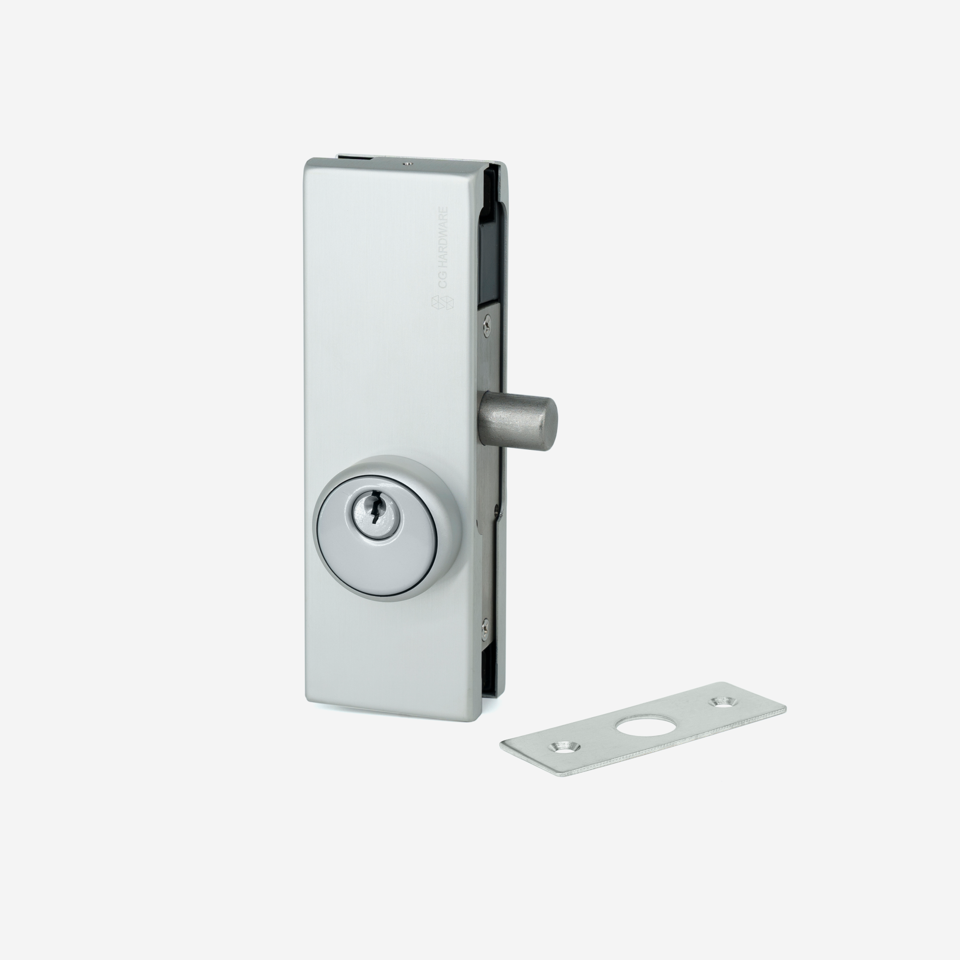

AMR Series Patch Lock - Satin Anodized
Color: Satin anodized



Size:
High-Density Aluminum Body with Stainless Steel Covers

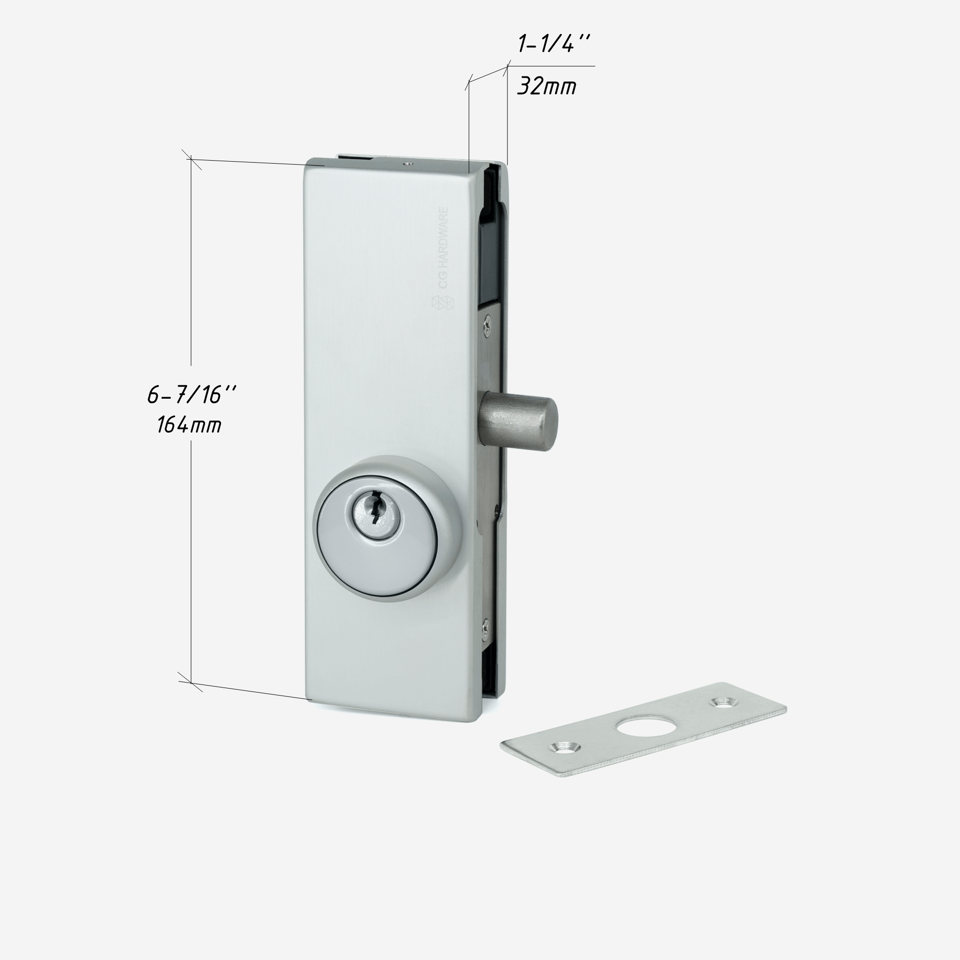

Dimensions: 6-7/16" x 1-1/4"
Use with 3/8" or 1/2" (10 or 12 mm) Glass
Brushed Stainless Steel, Satin Anodized and Matte Black Finishes
The AMR Series Patch Lock can be mounted on the top or bottom of doors.
NOTE: 7-pin cylinders are included (Single Keyed Cylinder with Thumbturn). The cylinder is interchangeable with other 7-pin cylinders.
Throw Bolt:
Diameter: 9/16" (15 mm)
Length: 11/16" (17 mm)
GLASS FABRICATION REQUIRED:
Top or Bottom Mount: One Corner Notch
COMES WITH: Strike Plate, Template and Instructions
DOES NOT INCLUDE: Double Keyed Cylinders
DOUBLE DOOR APPLICATION: For double door installations, a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
